Quick Details

  • Type: Other Door & Window Accessories
  • Place of Origin: Beijing, China (Mainland), beijing china
  • Brand Name: HSK
  • Model Number: 6072A
  • Usage: hospital/hotel/school
  • type: 6072A
  • material: stainless steel
  • standard: accessed DIN,EN standard
  • brand name: HSK

Packaging & Delivery

Packaging Details standard packing,netural or color packing,according to the request of the customers.
Delivery Time depend on the quantity you order

Escape Function Lock



Product Picture:



Dimension:



Code#: 6072ZA



Features:

a. For wooden or steel doors

b.Optional for non-rebated doors

c.Suitable for external fire and smoke protection doors

d.Prepared for profile cylinders

e.with key  action

e.Deadbolt1-turns



Technical data:

Material:SS304/201

Follower:8x8mm

Distance:72mm

Backset:60mm



Forend:

  •        Finish: SSS/PSS/PVD
  •        Type: round head/square head
  •        Thickness: 3mm
  •        Width:20mm,24mm



Accessories: Strike plate;Pocket;Lock and strike plate fixing screws



Name

escape function lock

Code Name

6072ZA

Backset

60MM

Distance

72mm

Follower

8X8mm

Forend

type

Square head (Round or Square)

width

20mm, 24mm

thickness

3 mm

Material

Stainless Steel grade 304, 201

Finish

SSS(SSS=Satin Stainless Steel;PSS=Polished Stainless Steel;PVD)

Accessories

1,Striking plate  2,Pocket  3,Lock and striking plate fixing screws

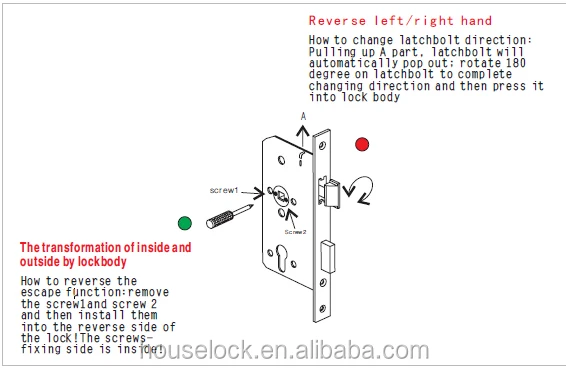

How to change latchbolt direction&How to reverse the escape function:



Function of use:



The lever / Knob in outside is at natural state,
When unlocked the door can be operated from
outside by using key.
When unlocked the door can be operated from inside
without key by pushing touchbar/handle,
the Escape side is in accord with Opening direction



Configurations:



configuration 1: to match the panic-anti bar to use:

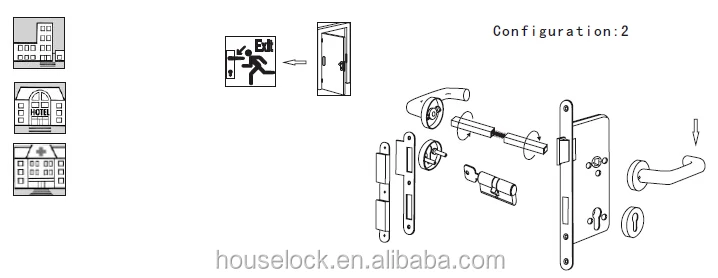

configuration 2: to match the door handle and cylinder to use:







Package:

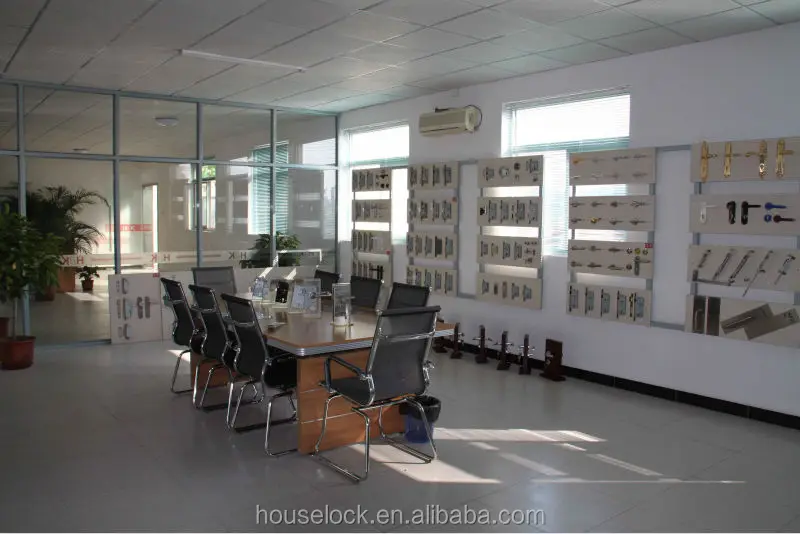

Our showroom:
