Euro stainless steel narrow lock 3092Z 3085

FOB Reference Price:Get Latest Price
US $3.75-4.5 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
HSK
Model Number:
3092Z
material:
stainless steel
Packaging & Delivery
Packaging Details
Neutral packing or colourized upon the request of our clients.
Port
Tianjin Guangzhou Shanghai
Lead Time :
25~30days

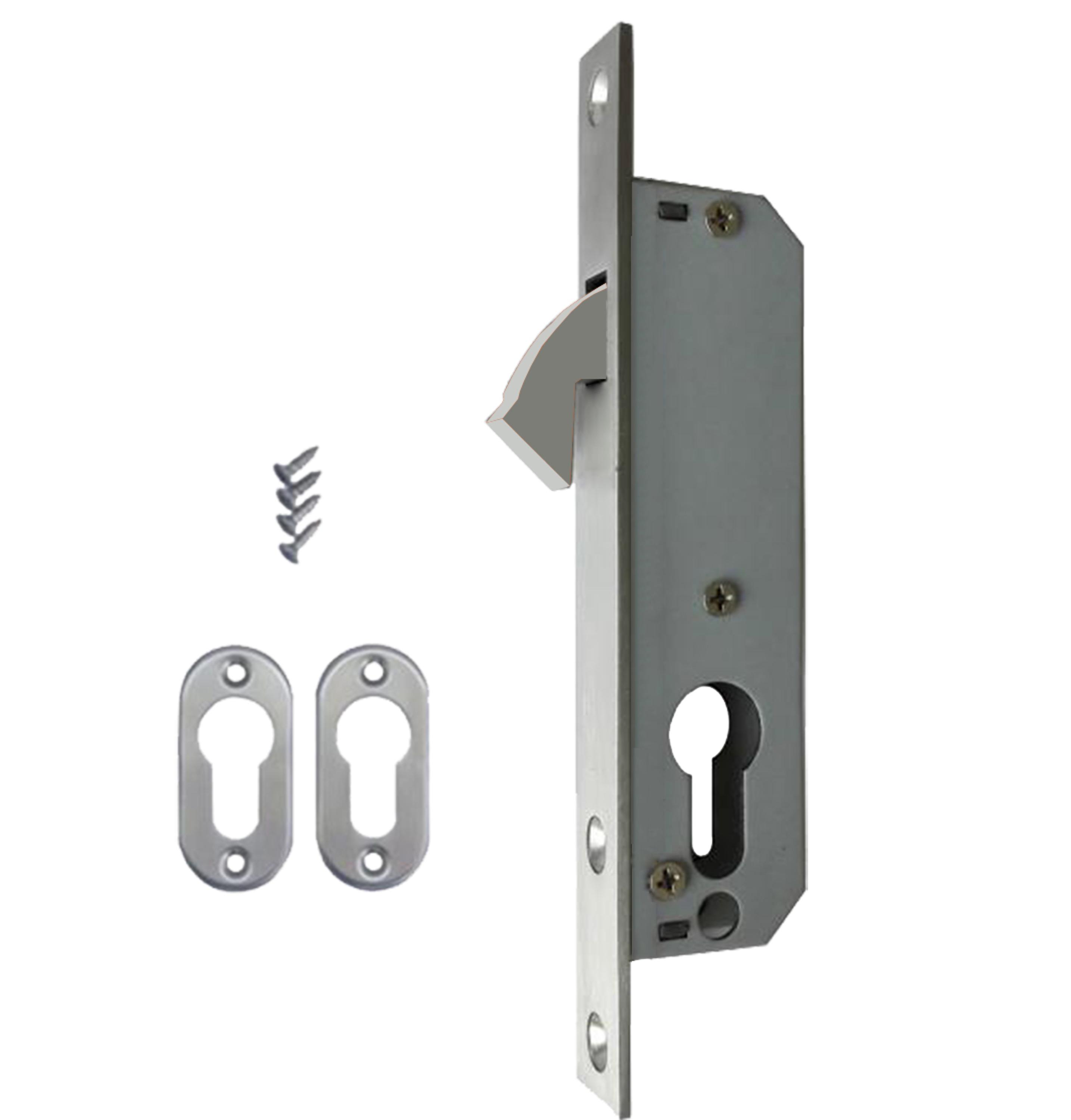

Steel profile door lock body



Production Picture:



Dimension:



Features

a. According to DIN 18.251-2 class 3

b. For  steel doors

c. Optional for or non-rebated doors

d. Suitable for  fire and smoke protection doors

e. Prepared for profile cylinders

 f. With key action

g. Deadbolt 1-turn



Technical data:



Name

NARROW LOCK SASH

Code Name

3092Z 3085Z

Backset

30mm

Distance

92mm  85mm

Follower

8×8mm

Forend

type

Square head

width

24mm

thickness

3 mm

length

240mm

Material

Lock case

1.5mm mild steel

Latchbolt/Forend/Strike Plate

Stainless Steel Grade 201

Finish

SSS

Accessories

1,Striking plate  2,Pocket  3,Lock and striking plate fixing screws

Packaging

25pcs/Carton;GrossWeight:15.50KG;Carton size:405×260×155mm;Neutral Packing or Colored packing as per requirements.



Technical data

  • Follower:8x8mm
  • Distance:85mm,92mm
  • Backset:30mm



Forend

  •        Finish: stainless steel    SSS/PSS/PVD
  •        Type: square ends
  •        Thickness: 3mm
  •        Width:22mm,24mm



Accessories

 a.Strike plate;

 b.Pocket;

 c.Lock and strike plate fixing screws

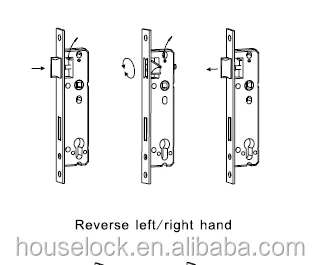

How to change the latch bolt direction:





Package:







Main Testing Equipment:



Production Assembly:
