Manufacturer of Euro profile stainless steel NARROW mortise ROLLER lock with cylinder hole

FOB Reference Price:Get Latest Price
US $2-10 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
HSK
Model Number:
3085ZR
Material:
stainless steel
Standard:
Acc. to DIN 18.250 class 3
MOQ:
1000pieces
Supply ability:
3000/day
Packaging & Delivery
Packaging Details
Neutral packing or colorized packing
Port
Tianjin, China,Guangzhou Shanghai
Lead Time :
Based on the quantity of order

92mm AND 85mm  distance steel door locks with cylinder

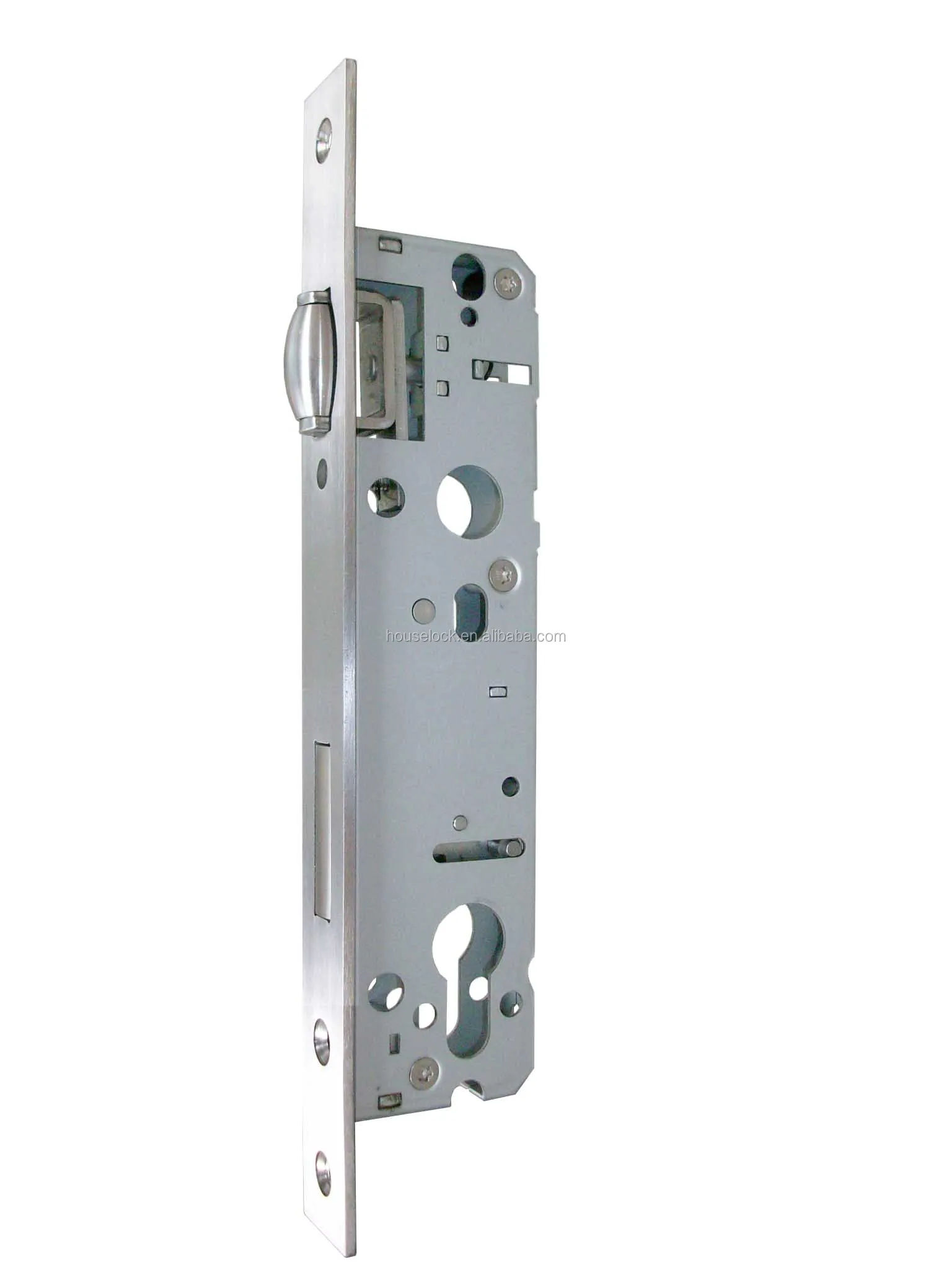

Production Picture:

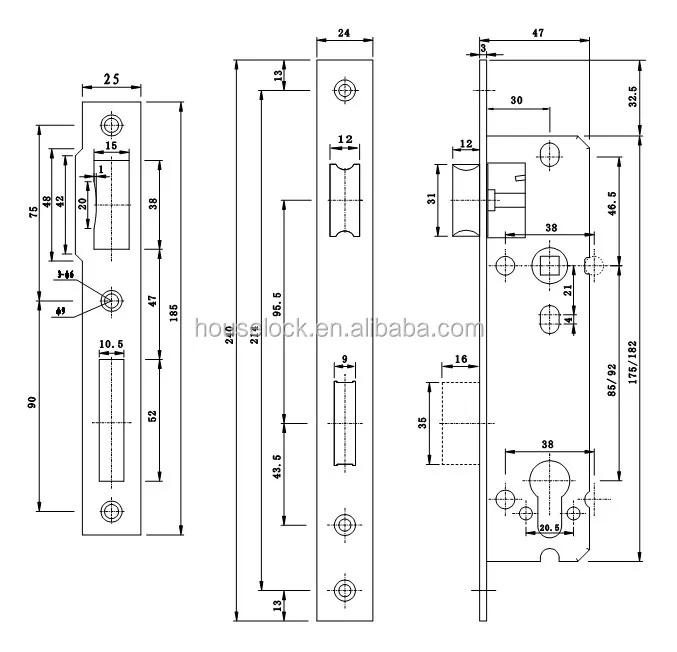

Dimension:



Feature:

  • Stainless Steel   304Grade
  • Type: 3092ZR
  • Features: According to DIN 18.250 class 3
  • For wooden or steel doors
  • For Fire door
  • Suitable for external fire and smoke protection door
  • Prepared for profile cylinders
  • With key action
  • Deadbolt 1-turn

Technical data  :



  • Follower: 8mm, 9mm
  • Distance: 92mm 85mm
  • Backset: 30mm
  • Forend Type; Round head ; Square head
  • Thickness: 3mm
  • Width: 20mm, 22mm, 23mm, 24mm
  • Forend finish: satin stainless steel, polished stainless steel, PVD stainless steel

 Accessories:

  • Striking plate
  • Pocket
  • Lock and striking plate fixing screws



  Confiduration:

Data:



Name

Narrow Mortise Lock

Code Name

3092ZR 3085ZR

Backset

30mm

Distance

92mm 85

Follower

8×8mm ; 9×9mm

Forend

type

Square head (Round or Square)

width

24mm(20, 22, 23, 24 )

thickness

3 mm

length

240mm

Material

Lock case

1.5mm mild steel

Latchbolt/Deadbolt

/Forend/Strike Plate

Stainless Steel Grade 304,201

Finish

SSS(SSS=Satin Stainless Steel;PSS=Polished Stainless Steel;PVD)

Accessories

1,Striking plate  2,Pocket  3,Lock and striking plate fixing screws

Packaging

25pcs/Carton;Carton size:405×260×155mm;Neutral Packing or Colored packing as per requirements.Gross Weight:20.00KG



Package:







Main Testing Equipment:



Production Assembly:
